LED Area Light
We make 200w led led area light, top quality with high light efficiency 140lm/w, 5 years Warranty. LED Orientalight is a professional manufacturer for led area light many years, the superior quality won the trust from lots of clients around the worldwide markets.
Send Inquiry
Product Description

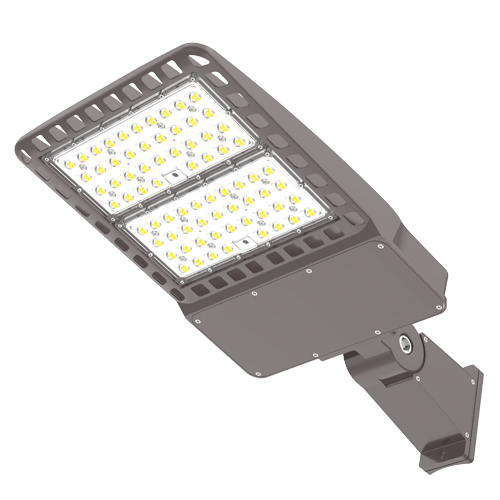

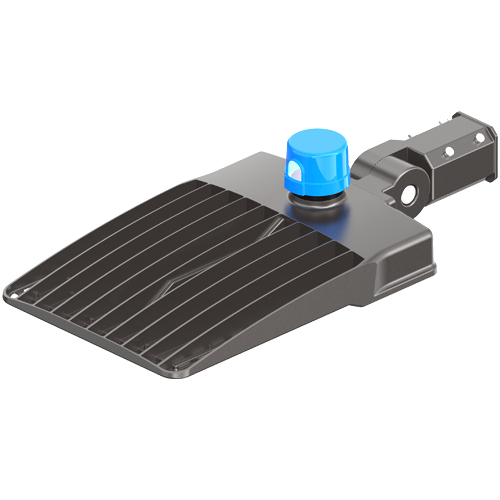

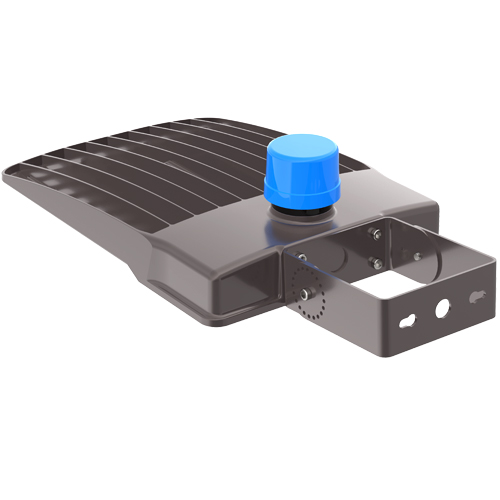

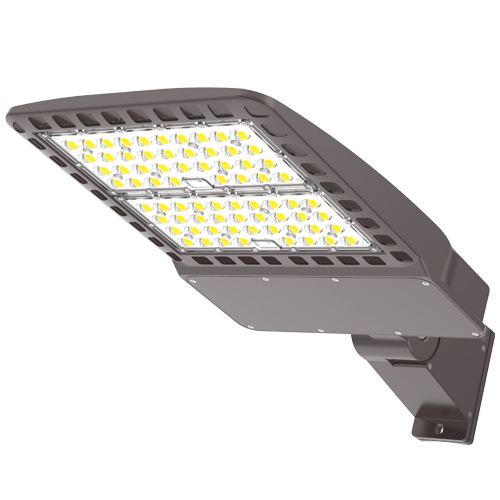

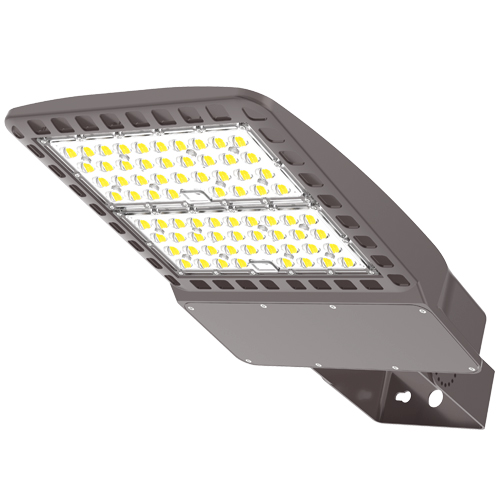

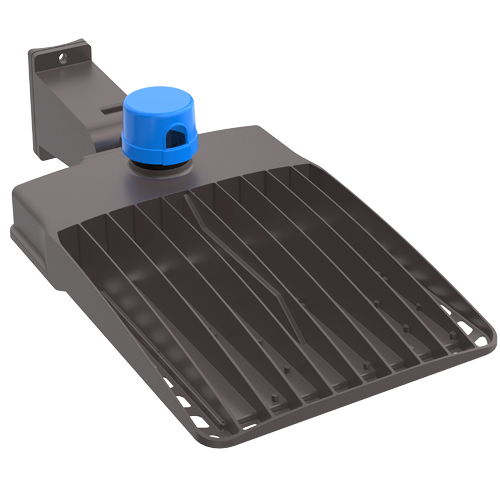

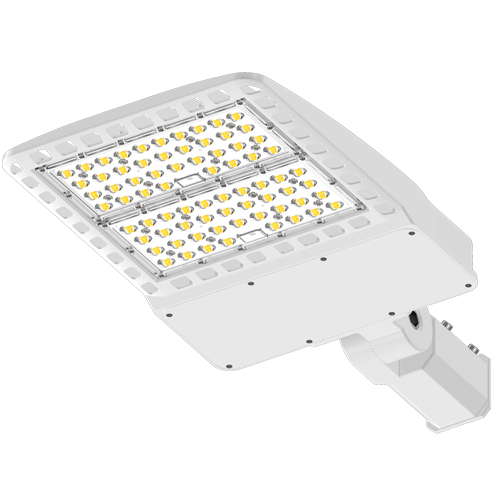

LED Area Light
1. Product Introduction of the 200w led area light.
Outdoor led area light products have been developed for decades, and a variety of lighting products have emerged one after another. Customers have gradually changed from the initial single luminous effect perception to light performance, color temperature, and secondary light distribution performance. Comprehensive performance evaluation, among which the secondary light distribution performance has been paid more and more attention by customers. The secondary light distribution of led area light refers to the use of lenses to perform secondary optical light distribution processing of the nearly 120° light pattern generated by the LED chip to achieve more efficient use of light, thereby meeting the lighting needs of different applications.LED shoebox light is also known as led area light fixtures, led parking lot lights, led parking lot pole lights,led post top light fixture,led shoebox pole light, and we have many models for option such as led shoebox 100w, led shoebox light 150w, led shoebox light 200w, led shoebox light 300w etc..
2.Product Parameter (Specification) of the200W led shoebox area light.
|
Item No. |
SB1200 |
|
Product Model |
LM-SBG336P200Y01-CW |
|
Size(mm) |
663*316*65 |
|
Input Voltage(V) |
AC100-277V 50/60Hz |
|
Color(CCT) |
3000K/4000K/5000K/6500K |
|
Luminous |
28000lm |
|
LED Quantity |
288pcs |
|
Led Type |
Osram or Lumileds |
|
CRI |
>80Ra |
|
PF |
>0.95 |
|
Beam Angle |
T3/T4/T5 |
|
Lamp body material |
Die cast Aluminium |
|
Installation |
Slip Fitter Mount, Trunnion(Bracket) Mount, Straight Arm Mount |
|
Dark grey |
|
|
Product Certificates |
CE RoHS |
|
Lifespan |
50,000hours |
|
Warranty |
5 years |
Lead time:
|
Quantity(Pieces) |
Sample |
1-500 |
500-2000 |
2001-10000 |
>10000 |
|
Time(Days) |
Inventory |
3-5 |
5-7 |
10-15 |
15-20 |
3.Product Feature And Application of the 200Wled shoebox lighting.
The main application of LED street lights are for main road, secondary road, branch road, factory, school, garden, city square, courtyard and other road lighting etc.
4. Product Details of the200W led area light fixtures.
1) It adopts aerodynamic design to quickly take away the heat, the radiator and the lamp beads keep a low temperature, the lamp beads have a longer service life and higher light efficiency.
2) Adopt high-efficiency power supply, installed on the cover of die-casting power supply, the heat is quickly conducted away, the temperature is lower, and the service life is longer.
5. Product Qualification of the200W led area light pole mount.
You can choose the angle, color temperature and brightness according to your demand for application.
6. Deliver,Shipping And Serving of the200W led area light dusk to dawn.
Our led area light has strong packaging design, the product will not be worn or broken during transportation, which can ensure the product reach your hand safely.
1)Our quality control (4 times 100% checking and 24 hours aging)
1.Raw material 100% check before production.
2.order must have a first sample and full check before manufacturing process.
3.100% check before aging.
4.24 hours aging with 500 times on off testing.
5.100% final inspection before packing.
2)Our service:
1.Your inquiry related to our products or prices will be replied in 2 hours even during holiday.
2.Well-trained and experienced staffs to answer all your inquiries in fluent English.
3.We accept “support” OEM&ODM orders
4.Distributorship is offered for your unique design and some our current models.
5.Protection of your sales are ideas of design and all your private information.
3)Warranty terms:
1/1 replacement of defects within the warranty period.
7.FAQ
1. Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures
2. What is your terms of payment?
Terms of payment 30% deposit,full payment before shipping the goods.
3. What is the lead time?
For sample lead time is 5-7 days.The specific delivery time depends on the items and the quantity of your order.
4. What is your terms of packing?
Generally, we pack our goods in neutral cartons.If is fragile we will make wooden frame.and we also can according to your requirements.
5. What is your terms of delivery?
We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
6. How to solve the quality problems after sales?
Take photos of the problems and send to us. We will make a satisfied solution for you within 24 hours after we confirm the problems.
7. Do you have any MOQ limit for led light order?
Low MOQ, 1pc for sample checking is available.
8. Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
9. You are manufacturer or trading company?
We are factory. Welcome to visit our factory at anytime.
