500w led flood light tower crane
We supply 200w 250w 300w 400w 500w 800w 1000w 1500w Outdoor led floodlights that used for high mast, tower crane, stadium, street, highway, square,billboard, exhibition hall, top quality with CE RoHS Certificates, 5 years Warranty. LED Orientalight Co., Limited has 14 years production experience for led flood lights, our products reaching the worldwide markets. If you are looking for a reliable supplier for high bay led light, please feel free to contact us.
Model:HF2500
Send Inquiry
Product Description

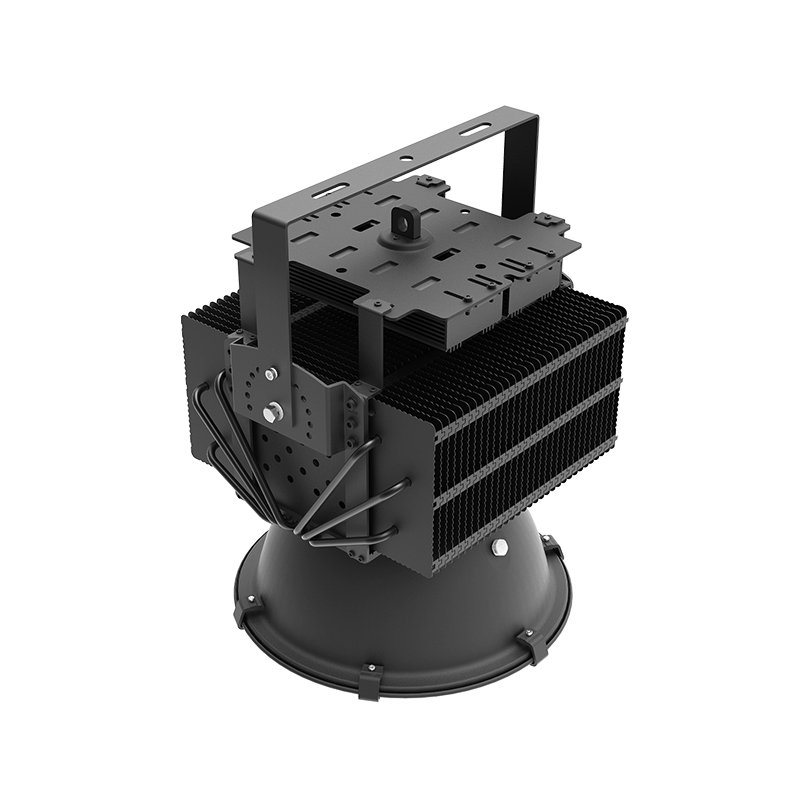

500w Outdoor LED Floodlights
1. Product Introduction of the high power led flood light
500W LED flood light is a powerful lighting solution that can be used for a variety of applications, including illuminating tower cranes and high masts. The benefits of using LED lights in these applications include their high energy efficiency, long lifespan, and low maintenance requirements.
When selecting a 500W LED flood light for a tower crane or high mast, it is important to consider a few key factors, including the light's beam angle, color temperature, and weather resistance. The beam angle should be wide enough to cover the entire area that needs to be illuminated, while the color temperature should be selected based on the desired ambiance. In addition, the light should be weather resistant and able to withstand exposure to wind, rain, and other elements.
It is also important to consider the mounting options for the LED flood light, as well as the wiring and control options. Some LED flood lights come with a built-in driver, while others require an external driver to be installed. The wiring and control options will vary based on the specific needs of the application and should be selected accordingly.
Overall, a 500W LED flood light is a great option for illuminating tower cranes and high masts, providing a bright, energy-efficient, and long-lasting lighting solution.
2.Product Parameter (Specification) of the 500w high power led flood light for tower crane and high mast lighting
|
Item No. |
HF2200 |
HF2250 |
HF2300 |
HF2400 |
|
Product Model |
LM-HFG274E200Y02-CW/WW/NW |
LM-HFG274E250Y02-CW/WW/NW |
LM-HFG274C300Y02-CW/WW/NW |
LM-HFG285C400Y02-CW/WW/NW |
|
Size(mm) |
274*267*510mm |
274*267*510mm |
274*267*510mm |
285*342*510mm |
|
Input Voltage(V) |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Color(CCT) |
3000K/4000K/5000K/6500K |
3000K/4000K/5000K/6500K |
3000K/4000K/5000K/6500K |
3000K/4000K/5000K/6500K |
|
Luminous |
24000lm |
35000Lm |
42000lm |
56000Lm |
|
LED Quantity |
210pcs |
320pcs |
320pcs |
400pcs |
|
Led Type |
Osram or Lumileds |
Osram or Lumileds |
Osram or Lumileds |
Osram or Lumileds |
|
CRI |
>80Ra |
>80Ra |
>80Ra |
>80Ra |
|
PF |
>0.95 |
>0.95 |
>0.95 |
>0.95 |
|
Beam Angle |
25°/60°/90° |
25°/60°/90° |
25°/60°/90° |
25°/60°/90° |
|
Lamp body material |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
|
Installation |
Bracket |
Bracket |
Bracket |
Bracket |
|
Body Color |
Black |
Black |
Black |
Black |
|
Product certificates |
CE RoHS |
CE RoHS |
CE RoHS |
CE RoHS |
|
Lifespan |
50,000hours |
50,000hours |
50,000hours |
50,000hours |
|
Warranty |
5 years |
5 years |
5 years |
5 years |
|
Item No. |
HF2500 |
HF2800 |
HF21000 |
HF21500 |
|
Product Model |
LM-HFG285C500Y02-CW/WW/NW |
LM-HFG412C800Y02-CW/WW/NW |
LM-HFG412C1000Y02-CW/WW/NW |
LM-HFG412C1500Y02-CW/WW/NW |
|
Size(mm) |
285*410*510mm |
412*406*607mm |
412*460*624mm |
412*572*608mm |
|
Input Voltage(V) |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Color(CCT) |
3000K/4000K/5000K/6500K |
3000K/4000K/5000K/6500K |
3000K/4000K/5000K/6500K |
3000K/4000K/5000K/6500K |
|
Luminous |
70000Lm |
112000Lm |
140000Lm |
210000Lm |
|
LED Quantity |
480pcs |
1248pcs |
1248pcs |
1440pcs |
|
Led Type |
Osram or Lumileds |
Osram or Lumileds |
Osram or Lumileds |
Osram or Lumileds |
|
CRI |
>80Ra |
>80Ra |
>80Ra |
>80Ra |
|
PF |
>0.95 |
>0.95 |
>0.95 |
>0.95 |
|
Beam Angle |
25°/60°/90° |
45°/60° |
45°/60° |
45°/60° |
|
Lamp body material |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
|
Installation |
Bracket |
Bracket |
Bracket |
Bracket |
|
Body Color |
Black |
Black |
Black |
Black |
|
Product certificates |
CE RoHS |
CE RoHS |
CE RoHS |
CE RoHS |
|
Lifespan |
50,000hours |
50,000hours |
50,000hours |
50,000hours |
|
Warranty |
5 years |
5 years |
5 years |
5 years |
Lead time:
|
Quantity(Pieces) |
Sample |
1-500 |
500-2000 |
2001-10000 |
>10000 |
|
Time(Days) |
Inventory |
7 |
7-10 |
15 |
15-20 |
3.Product Feature And Application of the 500w led flood lights tower crane lighting:
LED Flood Lights are widely used in high mast, tower crane, stadium, street, highway, square,billboard, exhibition hall,parking lot, tennis court,gymnasium,park,garden,building facade,any indoor or outdoor areas.
4. Product Details of the 200w 250w 300w 400w 500w 800w 1000w 1500w LED flood lights:
• 3030 SMD LED, completed light efficiency 140lm/w
• Mean well driver
• IP65 waterproof
• Better heat dissipation with big aluminum PCB and SMD
• Consistent color rendering (CRI) > 80
• Warranty: 5 years
5. Product Package and Installation of the 500w led flood lights tower crane lighting, high mast lighting
6. Deliver,Shipping And Serving of the LED flood lights tower crane lighting high mast light
Our led flood light has strong packaging design, the product will not be worn or broken during transportation, which can ensure the product reach your hand safely.
1) Our quality control (4 times 100% checking and 24 hours aging)
1.Raw material 100% check before production.
2.order must have a first sample and full check before manufacturing process.
3.100% check before aging.
4.24 hours aging with 500 times on off testing.
5.100% final inspection before packing.
2) Our service:
1.Your inquiry related to our products or prices will be replied in 2 hours even during holiday.
2.Well-trained and experienced staffs to answer all your inquiries in fluent English.
3.We accept “support” OEM&ODM orders
4.Distributorship is offered for your unique design and some our current models.
5.Protection of your sales are ideas of design and all your private information.
3) Warranty terms:
1/1 replacement of defects within the warranty period.
7.FAQ
Q: Where is your factory?
A: BaoAn,ShenZhenCity Guangdong Province.
Q: What kind of certificate you have?
A: All kinds of certificates can be supply based on large purchase quantity.
Q:How long will it take if asking for the samples?
A: General speaking, 3-5 working days if asking for our regular items.
Q:What is your lead time for the mass products such as 5000 units per item?
A: General speaking, about 35 days after getting down payment and confirmation about the samples.
Q:What is your payment terms?
A: T/T, by cash, western union, or L/C.
Q: What are your market reach throughout the region?
A:Our markets around the world in every corner, we have 14 years of experience in foreign trade.
Q:What is your main product line is made?
A:We mainly produce led application classes and industrial lighting fixtures. Including daily life indoor lighting.
(led track light, led panel light, led strip, led linear light, led high bay, led floodlight, led street light etc)
Q:Your factory or trading company?
A:We are a factory, we provide OEM services.
