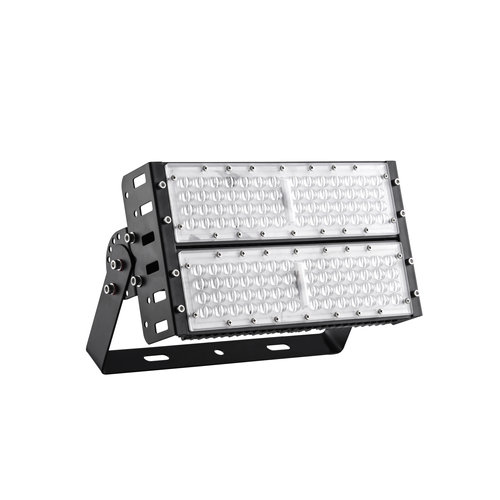

100watt High Power LED Flood Light
We supply 100w 150w 200w 250w 300w 400w 500w 600w LED flood light that used for tunnel, subway, street, highway, square,billboard, exhibition hall, top quality with CE RoHS Certificates, 5 years Warranty. LED Orientalight Co., Limited has 14 years production experience for led flood lights, our products reaching the worldwide markets. If you are looking for a reliable supplier for high bay led light, please feel free to contact us.
Model:FL3100
Send Inquiry
Product Description
LED Flood lights
1. Product Introduction of the led flood lights
LED Flood Lights are designed as the replacements for Metal Halide lamp, High Pressure Sodium lamp or Mercury Vapor inefficient high bay lighting, our LED flood Light have great advantages of higher bright, better heat dissipation and longer service lifetime, which can energy saving over 60%, environmental protection, no pollution, significant reduction in maintenance cost. LED Floodlights have wide application range, can be used as street Light, Flood Light, stadium lights, bay light, and of course for tunnel, etc.
2.Product Parameter (Specification) of the 100w high power led flood lights
|
Item No. |
FL3100 |
FL3150 |
FL3200 |
FL3250 |
|
Product Model |
LM-FLG315P100Y03-WW/NW/ CW |
LM-FLG315P150Y03-WW/NW/ CW |
LM-FLG315P200Y03-WW/NW/ CW |
LM-FLG315P250Y03-WW/NW/ CW |
|
Size(mm) |
315×177×212 |
315×267×212 |
315×357×212 |
315×447×212 |
|
Input Voltage(V) |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Color(CCT) |
3000K/4000K/5000K/6500K |
3000K/4000K/5000K/6500K |
3000K/4000K/5000K/6500K |
3000K/4000K/5000K/6500K |
|
Luminous |
14000Lm |
21000Lm |
28000Lm |
35000Lm |
|
LED Quantity |
120pcs |
180pcs |
240pcs |
300pcs |
|
Led Type |
Osram or Lumileds |
Osram or Lumileds |
Osram or Lumileds |
Osram or Lumileds |
|
CRI |
>80Ra |
>80Ra |
>80Ra |
>80Ra |
|
PF |
>0.95 |
>0.95 |
>0.95 |
>0.95 |
|
Beam Angle |
60°/90°/120° |
60°/90°/120° |
60°/90°/120° |
60°/90°/120° |
|
Lamp body material |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
|
Installation |
Bracket |
Bracket |
Bracket |
Bracket |
|
Body Color |
Black |
Black |
Black |
Black |
|
Product certificates |
CE RoHS |
CE RoHS |
CE RoHS |
CE RoHS |
|
Lifespan |
50,000hours |
50,000hours |
50,000hours |
50,000hours |
|
Warranty |
5 years |
5 years |
5 years |
5 years |
|
Item No. |
FL3300 |
FL3400 |
FL3500 |
FL3600 |
|
Product Model |
LM-FLG315P300Y03-WW/NW/ CW |
LM-FLG631P400Y03-WW/NW/ CW |
LM-FLG631P500Y03-WW/NW/ CW |
LM-FLG631P600Y03-WW/NW/ CW |
|
Size(mm) |
315×537×212 |
631×375×212 |
631*471*212 |
631*567*212 |
|
Input Voltage(V) |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Color(CCT) |
3000K/4000K/5000K/6500K |
3000K/4000K/5000K/6500K |
3000K/4000K/5000K/6500K |
3000K/4000K/5000K/6500K |
|
Luminous |
42000Lm |
56000Lm |
70000Lm |
84000Lm |
|
LED Quantity |
360pcs |
480pcs |
600pcs |
720pcs |
|
Led Type |
Osram or Lumileds |
Osram or Lumileds |
Osram or Lumileds |
Osram or Lumileds |
|
CRI |
>80Ra |
>80Ra |
>80Ra |
>80Ra |
|
PF |
>0.95 |
>0.95 |
>0.95 |
>0.95 |
|
Beam Angle |
60°/90°/120° |
60°/90°/120° |
60°/90°/120° |
60°/90°/120° |
|
Lamp body material |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
|
Installation |
Bracket |
Bracket |
Bracket |
Bracket |
|
Body Color |
Black |
Black |
Black |
Black |
|
Product Certificates |
CE RoHS |
CE RoHS |
CE RoHS |
CE RoHS |
|
Lifespan |
50,000hours |
50,000hours |
50,000hours |
50,000hours |
|
Warranty |
5 years |
5 years |
5 years |
5 years |
Lead time:
|
Quantity(Pieces) |
Sample |
1-500 |
500-2000 |
2001-10000 |
>10000 |
|
Time(Days) |
Inventory |
7 |
7-10 |
15 |
15-20 |
3.Product Feature And Application of the 100w high power led flood lights:
LED Flood Lights are widely used in tunnel, subway, street, highway, square,billboard, exhibition hall,parking lot, tennis court,gymnasium,park,garden,building facade,any indooror outdoor areas.
4. Product Details of the 100w 150w 200w 250w 300w 400w 500w 600w LED flood lights:
Item No.: FL3100
Product Model: LM-FLG315P100Y03-CW
Power (W): 100 Watts
Size(mm): 315*183*213.5mm
Input Voltage(V): AC90-305V 50/60Hz
Color(CCT): 3000K/4000K/5000K/6000K
Luminous Flux: 14000Lm
LED Quantity: 120 Pcs
Led Type: PHILIPS/OSRAM
Beam Angle: 60°/90°/120°
IP Grade: IP65
Operating Temperature: -40-60℃
CRI: >80Ra
PF: 0.95
Lifespan: 50,000hours
Warranty: 5 years
5. Product Qualification of the led flood lights
You can choose the angle, color temperature and brightness according to your demand for application.
Professional light effect design provides accurate light distribution, color rendering index is greater than 80
Lifespan up to 50000 hours. Simple and stylish design, integrated into various environments
6. Deliver,Shipping And Serving of the LED flood lights
Our led flood light has strong packaging design, the product will not be worn or broken during transportation, which can ensure the product reach your hand safely.
1) Our quality control (4 times 100% checking and 24 hours aging)
1.Raw material 100% check before production.
2.order must have a first sample and full check before manufacturing process.
3.100% check before aging.
4.24 hours aging with 500 times on off testing.
5.100% final inspection before packing.
2) Our service:
1.Your inquiry related to our products or prices will be replied in 2 hours even during holiday.
2.Well-trained and experienced staffs to answer all your inquiries in fluent English.
3.We accept “support” OEM&ODM orders
4.Distributorship is offered for your unique design and some our current models.
5.Protection of your sales are ideas of design and all your private information.
3) Warranty terms:
1/1 replacement of defects within the warranty period.
7.FAQ
Q: Where is your factory?
A: BaoAn,ShenZhenCity Guangdong Province.
Q: What kind of certificate you have?
A: All kinds of certificates can be supply based on large purchase quantity.
Q:How long will it take if asking for the samples?
A: General speaking, 3-5 working days if asking for our regular items.
Q:What is your lead time for the mass products such as 5000 units per item?
A: General speaking, about 35 days after getting down payment and confirmation about the samples.
Q:What is your payment terms?
A: T/T, by cash, western union, or L/C.
Q: What are your market reach throughout the region?
A:Our markets around the world in every corner, we have 14 years of experience in foreign trade.
Q:What is your main product line is made?
A:We mainly produce led application classes and industrial lighting fixtures. Including daily life indoor lighting.
(led track light, led panel light, led strip, led linear light, led high bay, led floodlight, led street light etc)
Q:Your factory or trading company?
A:We are a factory, we provide OEM services.
