100w new LED flood light
We supply 30w 50w 60w 100w 150w 200w 250w 300w 400w 500w LED flood light that used for buildings, advertising board, gym, stadium, yard, lawn, garden, park, plaza, workshop, warehouse, shopping mall, exhibition hall, tunnel, football field, top quality with CE RoHS Certificates, 5 years Warranty. LED Orientalight Co., Limited has 15 years production experience for led flood lights, our products reaching the worldwide markets. If you are looking for a reliable supplier for LED Flood light, please feel free to contact us.
Model:LM-FL-100W
Send Inquiry
Product Description
1. Product Introduction of the led flood lights
LED flood lights are powerful lighting fixtures designed to illuminate large outdoor areas with a broad beam of light. They are commonly used for security lighting, landscape lighting, sports field lighting, and architectural lighting. LED flood lights offer several advantages over traditional lighting sources, including energy efficiency, long lifespan, and durability.
LED flood lights are a versatile and efficient lighting solution for outdoor spaces, providing bright and uniform illumination while offering energy savings and long-term durability. They are a popular choice for a wide range of outdoor lighting applications due to their performance and reliability.
2.Product Parameter (Specification) of the high power led flood lights.
|
Item No. |
LM-FL-30W |
LM-FL-60W |
LM-FL-100W |
LM-FL-150W |
|
Product Model |
LM-FLG168P30Y08-CW |
LM-FLG230P60Y08-CW |
LM-FLG280P100Y08-CW |
LM-FLG459P150Y08-CW |
|
Size(mm) |
168*120*36mm |
230*180*71mm |
280*215*71mm |
459*427*71mm |
|
Input Voltage(V) |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Color(CCT) |
3000K/4000K/ 5000K/6500K |
3000K/4000K/ 5000K/6500K |
3000K/4000K/ 5000K/6500K |
3000K/4000K/ 5000K/6500K |
|
Luminous |
4800Lm |
9600Lm |
16000Lm |
24000Lm |
|
IP Grade |
IP66 |
IP66 |
IP66 |
IP66 |
|
Led Type |
Lumileds |
Lumileds |
Lumileds |
Lumileds |
|
CRI |
>70Ra |
>70Ra |
>70Ra |
>70Ra |
|
PF |
>0.95 |
>0.95 |
>0.95 |
>0.95 |
|
Beam Angle |
120° |
120° |
120° |
30°/60°/90°/120° |
|
Lamp body material |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
|
Installation |
Bracket |
Bracket |
Bracket |
Bracket |
|
Body Color |
Black |
Black |
Black |
Black |
|
Product certificates |
CE RoHS |
CE RoHS |
CE RoHS |
CE RoHS |
|
Lifespan |
50,000hours |
50,000hours |
50,000hours |
50,000hours |
|
Warranty |
5 years |
5 years |
5 years |
5 years |
|
Item No. |
LM-FL-200W |
LM-FL-250W |
LM-FL-300W |
LM-FL-400W |
LM-FL-500W |
|
Product Model |
LM-FLG459P200Y08-CW |
LM-FLG459P250Y08-CW |
LM-FLG459P300Y08-CW |
LM-FLG585P400Y08-CW |
LM-FLG585P500Y08-CW |
|
Size(mm) |
459*427*71mm |
459*427*71mm |
459*427*71mm |
585*512*72mm |
585*512*72mm |
|
Input Voltage(V) |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Color(CCT) |
3000K/4000K/ 5000K/6500K |
3000K/4000K/ 5000K/6500K |
3000K/4000K/ 5000K/6500K |
3000K/4000K/ 5000K/6500K |
3000K/4000K/ 5000K/6500K |
|
Luminous |
32000Lm |
39000Lm |
48000Lm |
64000Lm |
80000Lm |
|
IP Grade |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
|
Led Type |
Lumileds |
Lumileds |
Lumileds |
Lumileds |
Lumileds |
|
CRI |
>70Ra |
>70Ra |
>70Ra |
>70Ra |
>70Ra |
|
PF |
>0.95 |
>0.95 |
>0.95 |
>0.95 |
>0.95 |
|
Beam Angle |
30°/60°/90°/120° |
30°/60°/90°/120° |
30°/60°/90°/120° |
30°/60°/90°/120° |
30°/60°/90°/120° |
|
Lamp body material |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
|
Installation |
Bracket |
Bracket |
Bracket |
Bracket |
Bracket |
|
Body Color |
Black |
Black |
Black |
Black |
Black |
|
Product certificates |
CE RoHS |
CE RoHS |
CE RoHS |
CE RoHS |
CE RoHS |
|
Lifespan |
50,000hours |
50,000hours |
50,000hours |
50,000hours |
50,000hours |
|
Warranty |
5 years |
5 years |
5 years |
5 years |
5 years |
Lead time:
|
Quantity(Pieces) |
Sample |
1-500 |
500-2000 |
2001-10000 |
>10000 |
|
Time(Days) |
Inventory |
7 |
7-10 |
15 |
15-20 |
3.Product Feature And Application of the new slim led flood lights:

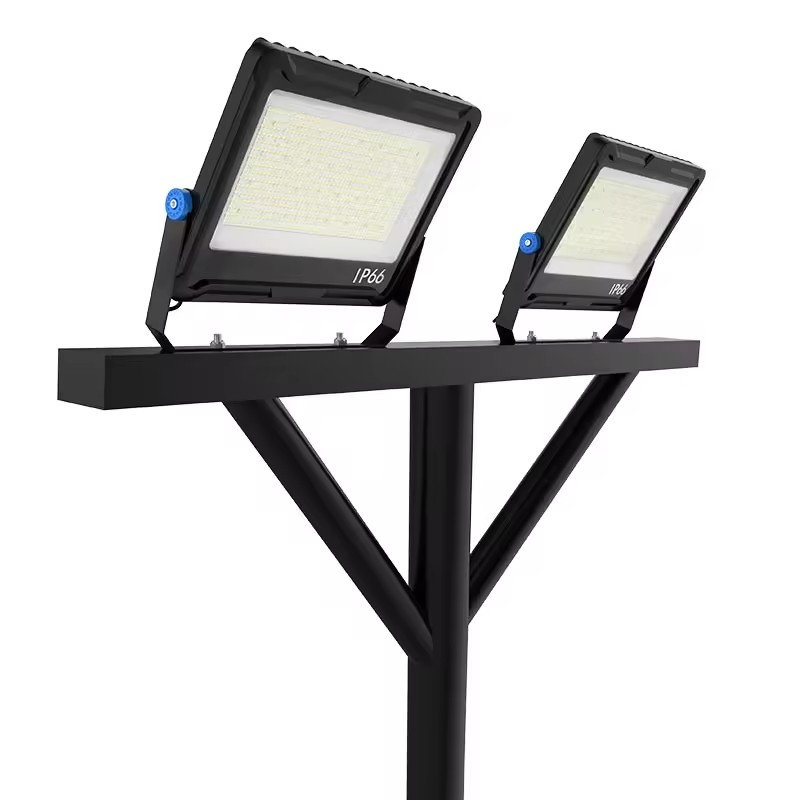

LED Flood Lights are widely used in tunnel, subway, street, highway, square,billboard, exhibition hall,parking lot, tennis court,gymnasium,park,garden,building facade,any indooror outdoor areas.

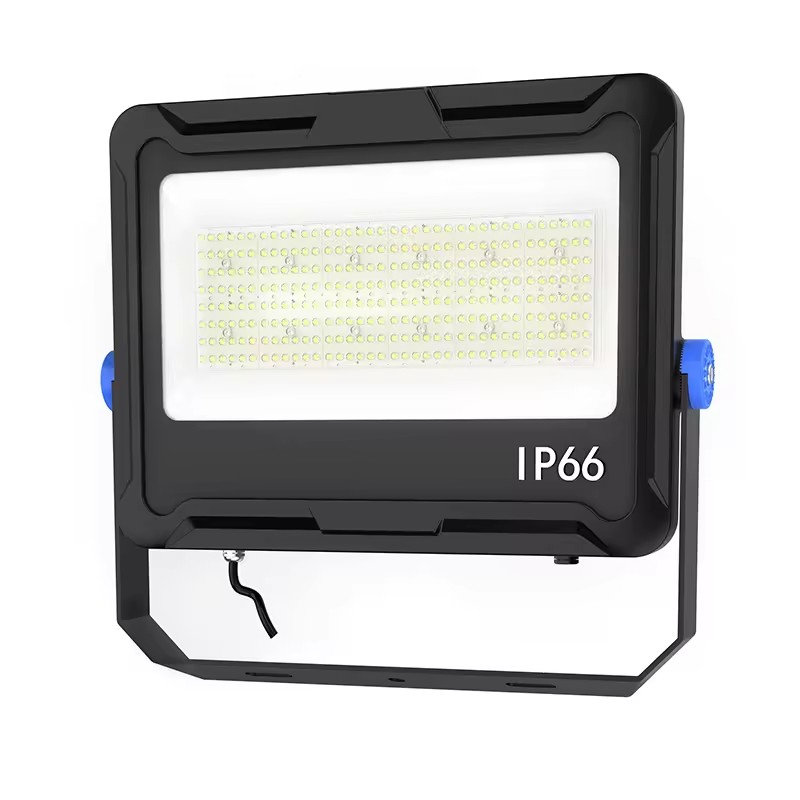

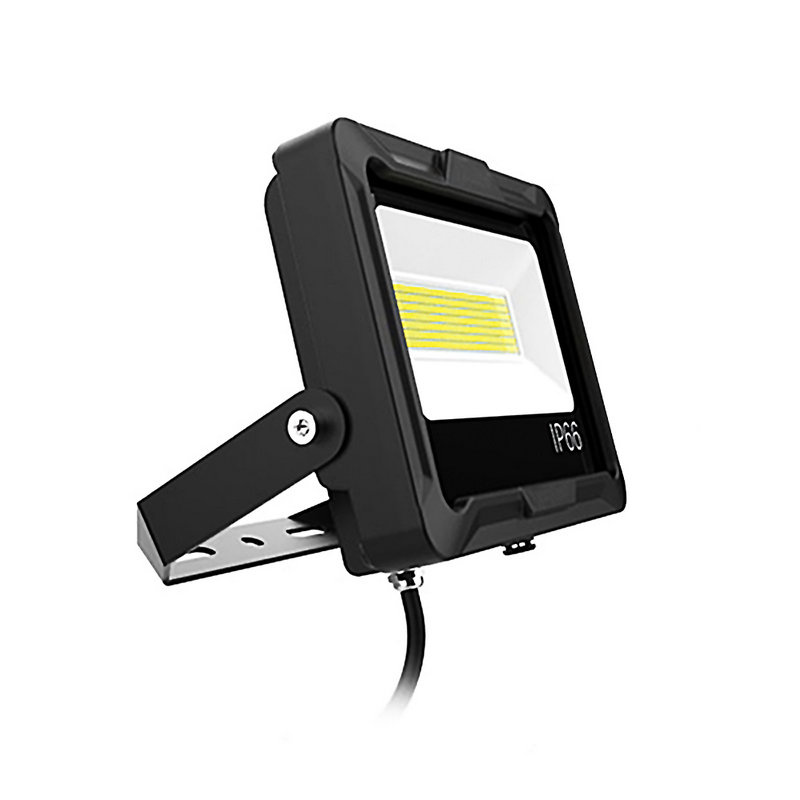

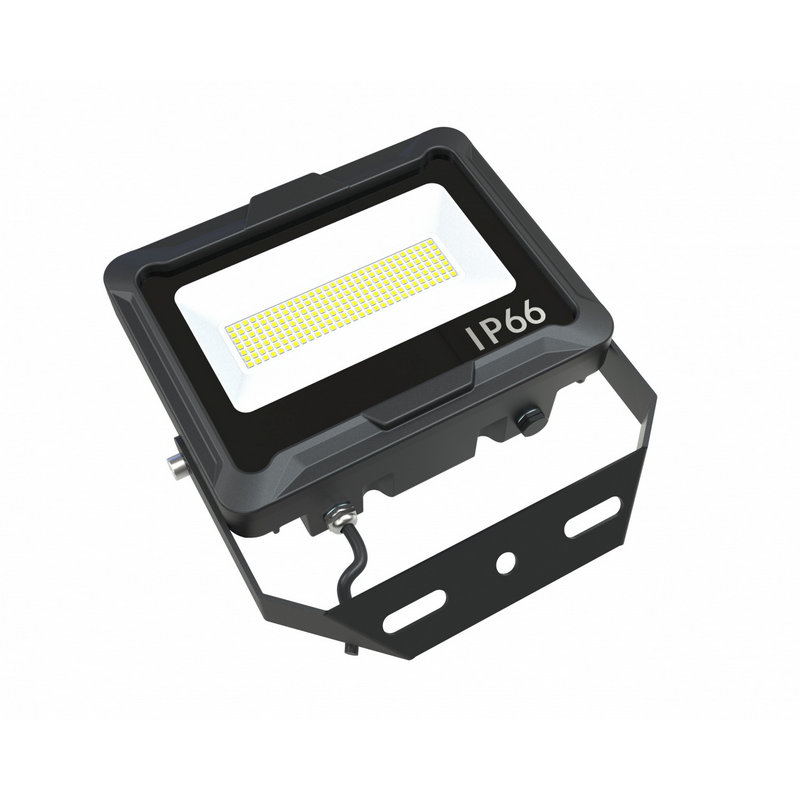

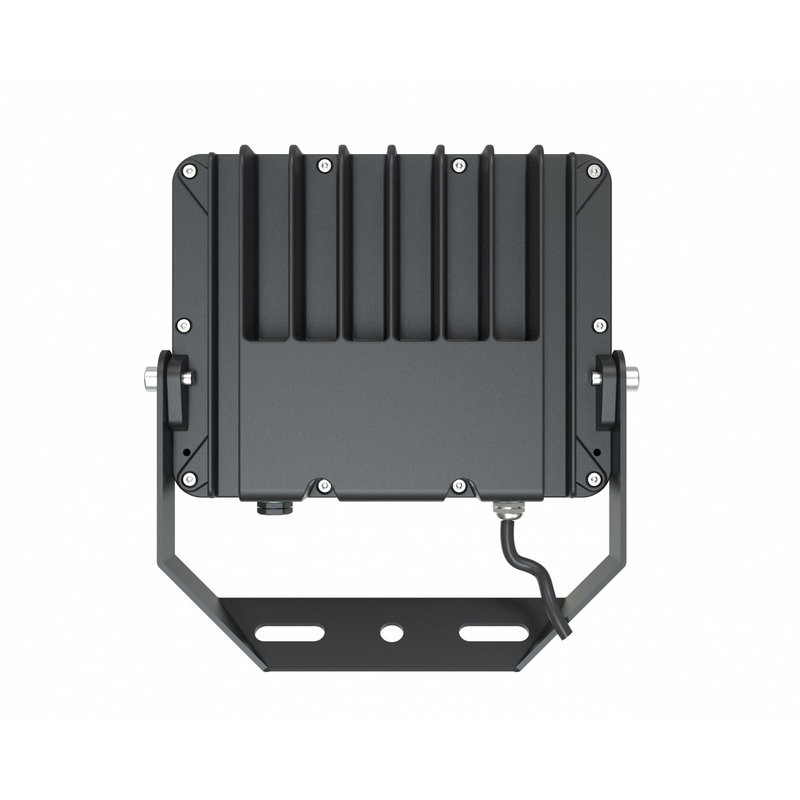

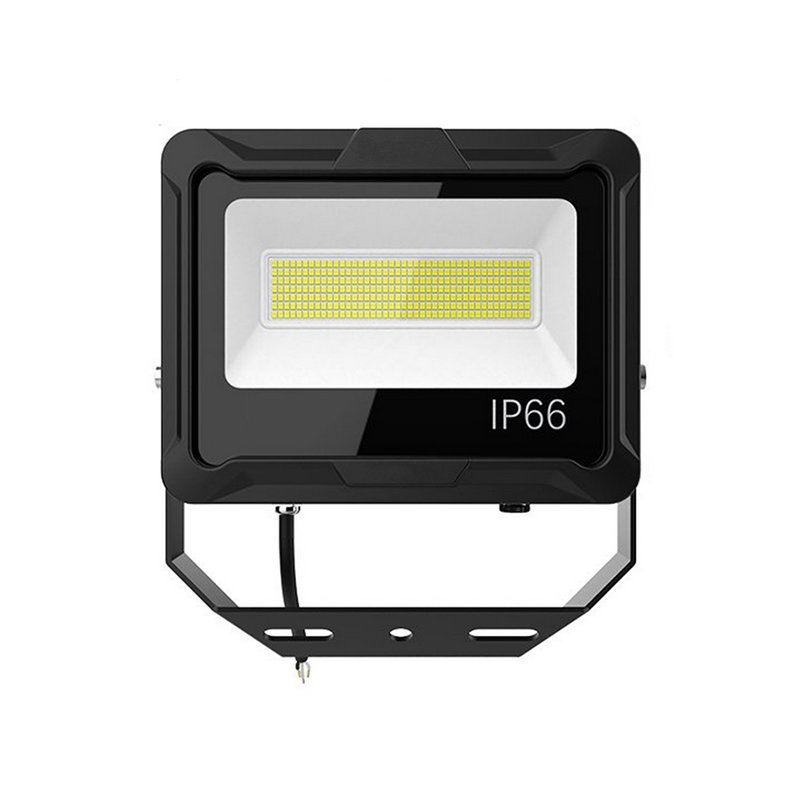

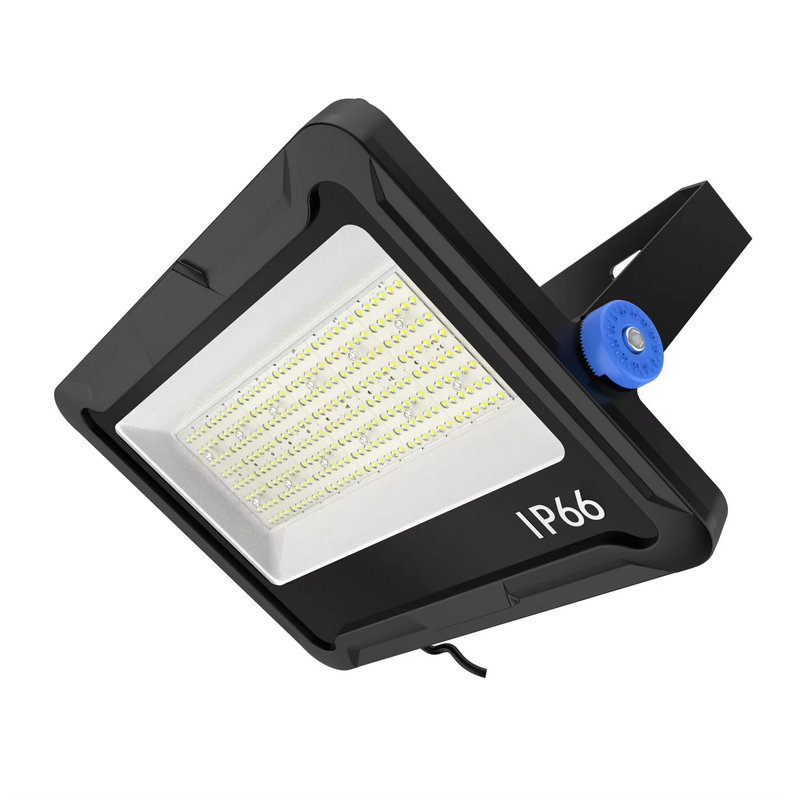

4. Product Details of the 100w LED flood lights:
Item No.: LM-FL-100W
Product Model: LM-FLG280P100Y08-CW
Power (W): 100 Watts
Size(mm): 280*215*71mm
Input Voltage(V): AC85-265V 50/60Hz
Color(CCT): 3000K/4000K/5000K/6000K
Luminous Flux: 16000Lm
Led Type: Lumileds

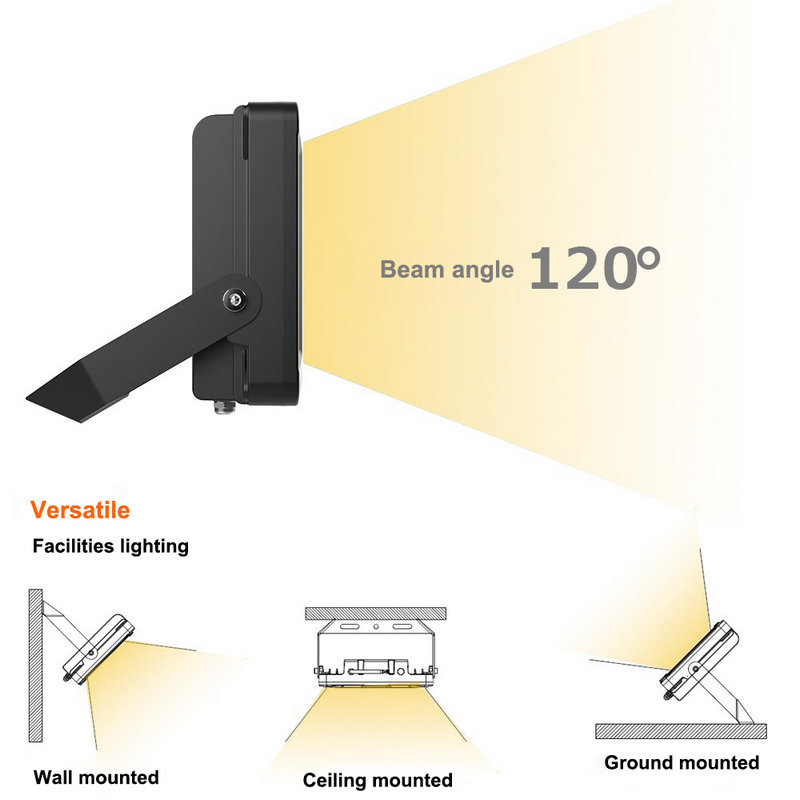

Beam Angle: 120°
IP Grade: IP66
Operating Temperature: -40-60℃
CRI: >70Ra
PF: 0.95
Lifespan: 50,000hours
Warranty: 5 years
5. Product Qualification of the led flood lights

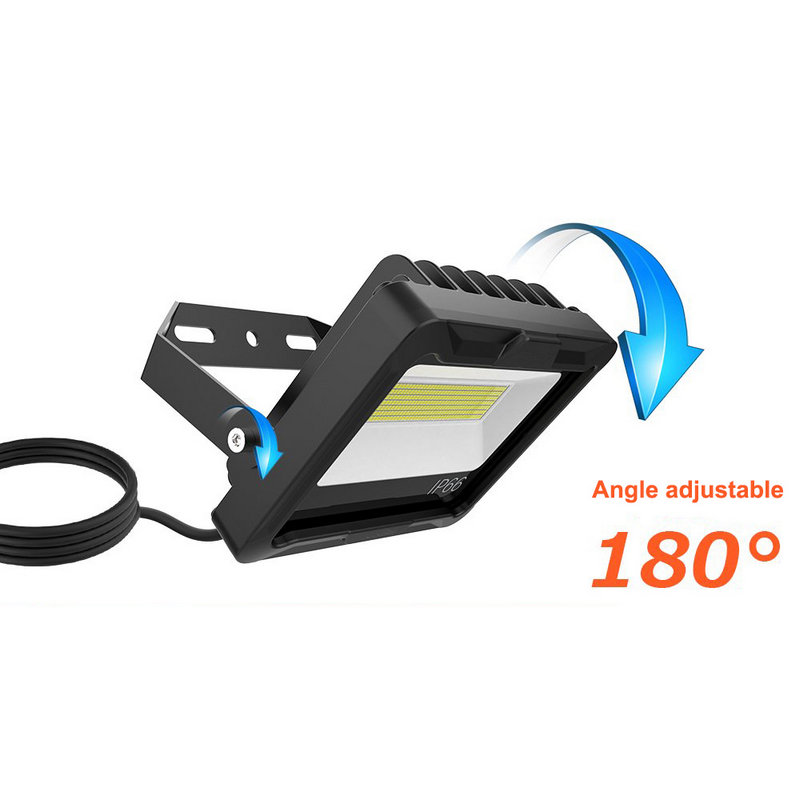

You can choose the angle, color temperature and brightness according to your demand for application.
Professional light effect design provides accurate light distribution, color rendering index is greater than 80

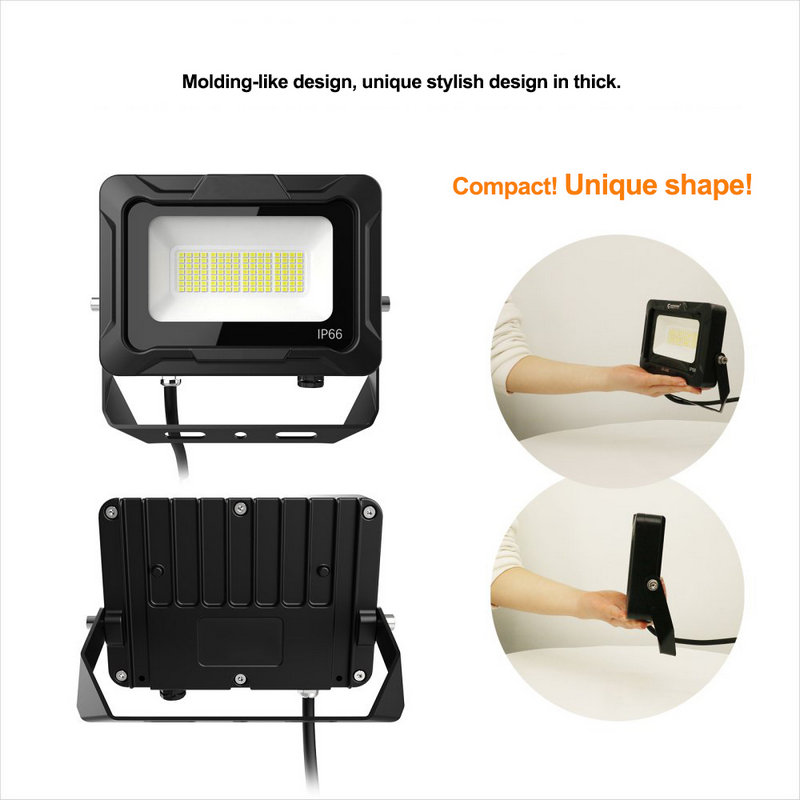

Lifespan up to 50000 hours. Simple and stylish design, integrated into various environments
6. Deliver,Shipping And Serving of the LED flood lights
Our led flood light has strong packaging design, the product will not be worn or broken during transportation, which can ensure the product reach your hand safely.
1) Our quality control (4 times 100% checking and 24 hours aging)
1.Raw material 100% check before production.
2.order must have a first sample and full check before manufacturing process.
3.100% check before aging.
4.24 hours aging with 500 times on off testing.
5.100% final inspection before packing.
2) Our service:
1.Your inquiry related to our products or prices will be replied in 2 hours even during holiday.
2.Well-trained and experienced staffs to answer all your inquiries in fluent English.
3.We accept “support” OEM&ODM orders
4.Distributorship is offered for your unique design and some our current models.
5.Protection of your sales are ideas of design and all your private information.
3) Warranty terms:
1/1 replacement of defects within the warranty period.
7.FAQ
Q: Where is your factory?
A: BaoAn,ShenZhenCity Guangdong Province.
Q: What kind of certificate you have?
A: All kinds of certificates can be supply based on large purchase quantity.
Q:How long will it take if asking for the samples?
A: General speaking, 3-5 working days if asking for our regular items.
Q:What is your lead time for the mass products such as 5000 units per item?
A: General speaking, about 35 days after getting down payment and confirmation about the samples.
Q:What is your payment terms?
A: T/T, by cash, western union, or L/C.
Q: What are your market reach throughout the region?
A:Our markets around the world in every corner, we have 14 years of experience in foreign trade.
Q:What is your main product line is made?
A:We mainly produce led application classes and industrial lighting fixtures. Including daily life indoor lighting.
(led track light, led panel light, led strip, led linear light, led high bay, led floodlight, led street light etc)
Q:Your factory or trading company?
A:We are a factory, we provide OEM services.
